Sanitary
Hose System
Key Industrial's Sanitary Hose System™
Parker / Titan Rubber Food Hose

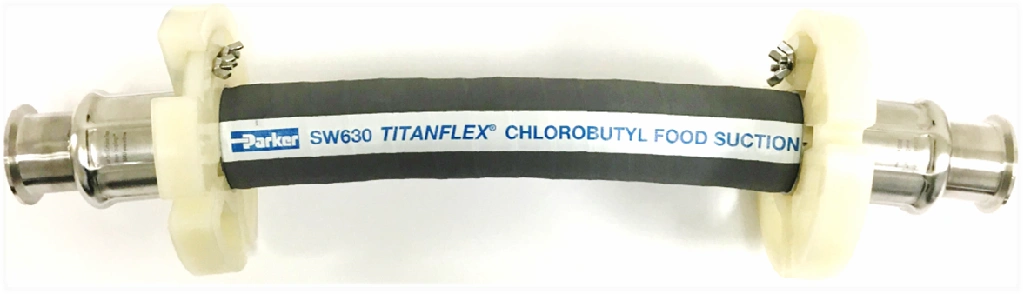

Parker / Titan SW630
200# Food Grade Suction
and Discharge Hose
and Discharge Hose
Our Titan SW630 is a high quality 200#
food grade suction and discharge hose with a chlorobutyl inner tube. We've selected this hose for its upgraded pressure rating of 200# and high grade premium cholrobutly inner tube. Better than the standard 150# / Nitrile hose found on most suction and discharge hose assemblies. This a great quality and highly flexible hose
food grade suction and discharge hose with a chlorobutyl inner tube. We've selected this hose for its upgraded pressure rating of 200# and high grade premium cholrobutly inner tube. Better than the standard 150# / Nitrile hose found on most suction and discharge hose assemblies. This a great quality and highly flexible hose
| Size |
1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" |
| Part# |
SW630-1 | SW630-1.5 |
SW630-2 | SW630-2.5 | SW630-3 | SW630-4 |
Full Specifications for SW630 Suction and Discharge

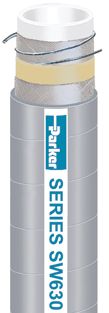

Parker / Titan SW630 Series - Food Suction and Discharge
Tube: FDA White Chlorobutyl
Cover: Grey EPDM. Wrapped Finish, White Strip
Reinforcement: Multiple Textile plies with dual wire helix
Temperature Range: -40º F to +225º F (-29 C to +107 C)
Vacuum: Full
.
Hose ID |
Hose OD |
Working Pressure |
Max Length |
Bend Radius |
Weight lbs/ ft |
Vacuum Rating |
|
1.0" |
1.62" |
200 |
100ft |
4.5 |
.70 |
30 |
|
1.5" |
2.2125" |
200 |
100ft |
4.5 |
.71 |
30 |
|
2.0" |
2.641" |
200 |
100ft |
6 |
.95 |
30 |
|
2.5" |
3.156" |
200 |
100ft |
7.5 |
1.20 |
30 |
|
3.0" |
3.703" |
200 |
100ft |
9 |
1.51 |
30 |
|
4.0" |
4.734" |
200 |
100ft |
12 |
1.98 |
30 |

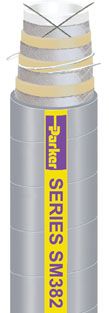

Parker / Titan SM382
Crush Resistant Hose
250# Heavy Duty Food Grade
Suction and Discharge Hose
CRUSH RESISTANT POLY WIRE DESIGN
Our Parker / Titan SM382 Crush Resistant Hose is a high quality long lasting rubber food hose. Offering crush and kink resistance with its poly wire design. This is the hose of choice for most brewery and winery applications. Also great for food and dairy when crush resistant is desired. Has a high quality chlorobutyl inner tube.
Suction and Discharge Hose
CRUSH RESISTANT POLY WIRE DESIGN
Our Parker / Titan SM382 Crush Resistant Hose is a high quality long lasting rubber food hose. Offering crush and kink resistance with its poly wire design. This is the hose of choice for most brewery and winery applications. Also great for food and dairy when crush resistant is desired. Has a high quality chlorobutyl inner tube.
| Size |
1.0" | 1.5" | 2.0" | 2.5" | 3.0" | 4.0" |
| Part# |
SM382-10 | SM382-15 |
SM382-20 | SM382-25 | SM382-30 | SM382-40 |
Full Specifications for SM382 Crush Resistant Hose
Tube: FDA White Chlorobutyl
Cover: Grey EPDM. Wrapped Finish, White Strip
Reinforcement: Multiple textile plies with dual monofilament helix and dual static wire
Temperature Range: -40º F to +225º F (-29 C to +107 C)
Vacuum: Full
Cover: Grey EPDM. Wrapped Finish, White Strip
Reinforcement: Multiple textile plies with dual monofilament helix and dual static wire
Temperature Range: -40º F to +225º F (-29 C to +107 C)
Vacuum: Full
Hose ID |
Hose OD |
Working Pressure |
Max Length |
Bend Radius |
Weight lbs/ ft |
Vacuum Rating |
|
1.0" |
1.78" |
250 |
100ft |
5 |
.90 |
30 |
|
1.5" |
2.25" |
250 |
100ft |
5 |
1.16 |
30 |
|
2.0" |
2.781" |
250 |
100ft |
7 |
1.21 |
30 |
|
2.5" |
3.281" |
250 |
100ft |
13 |
1.52 |
30 |
|
3.0" |
3.781" |
250 |
100ft |
21 |
1.84 |
30 |
|
4.0" |
4.781" |
250 |
100ft |
40 |
2.52 |
30 |
.
